Common Applications: Container doors, Trailer doors, Rail cars, Truck doors, Railroad cars, Containers.
Colors available: Blue, Yellow & White

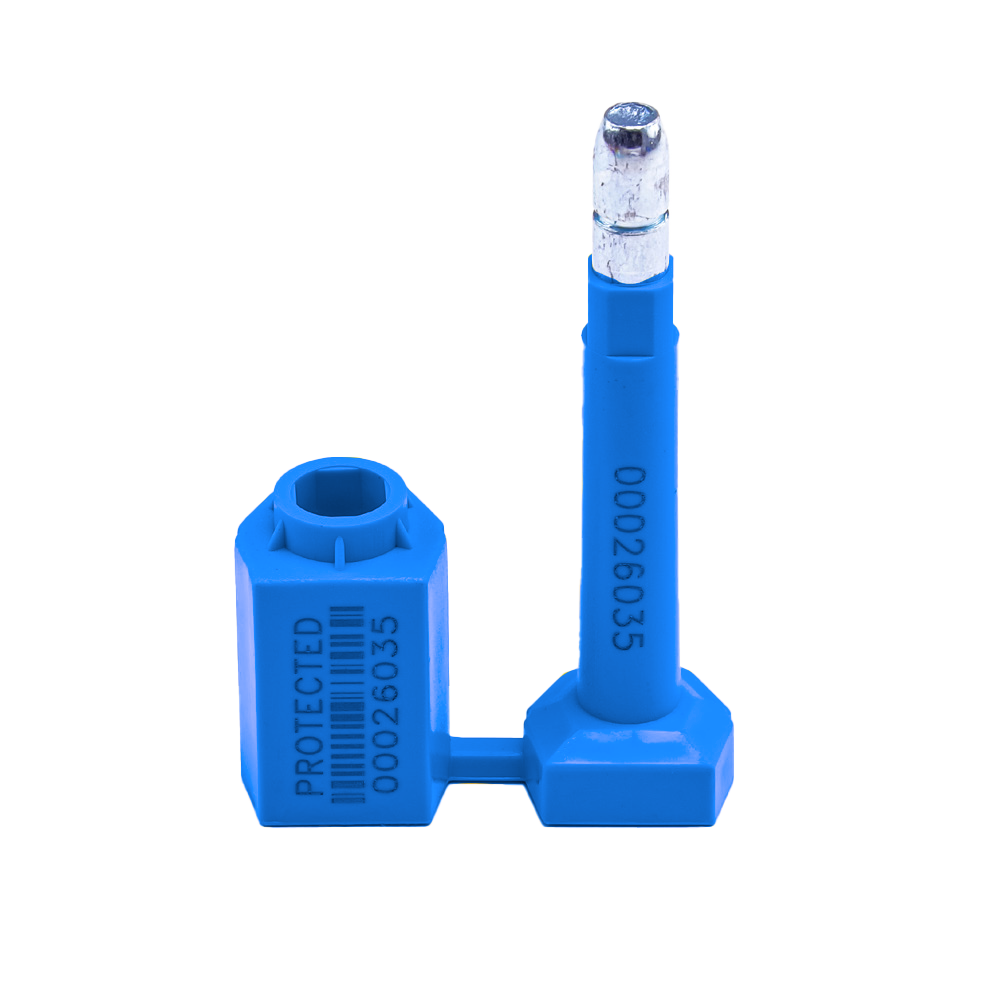

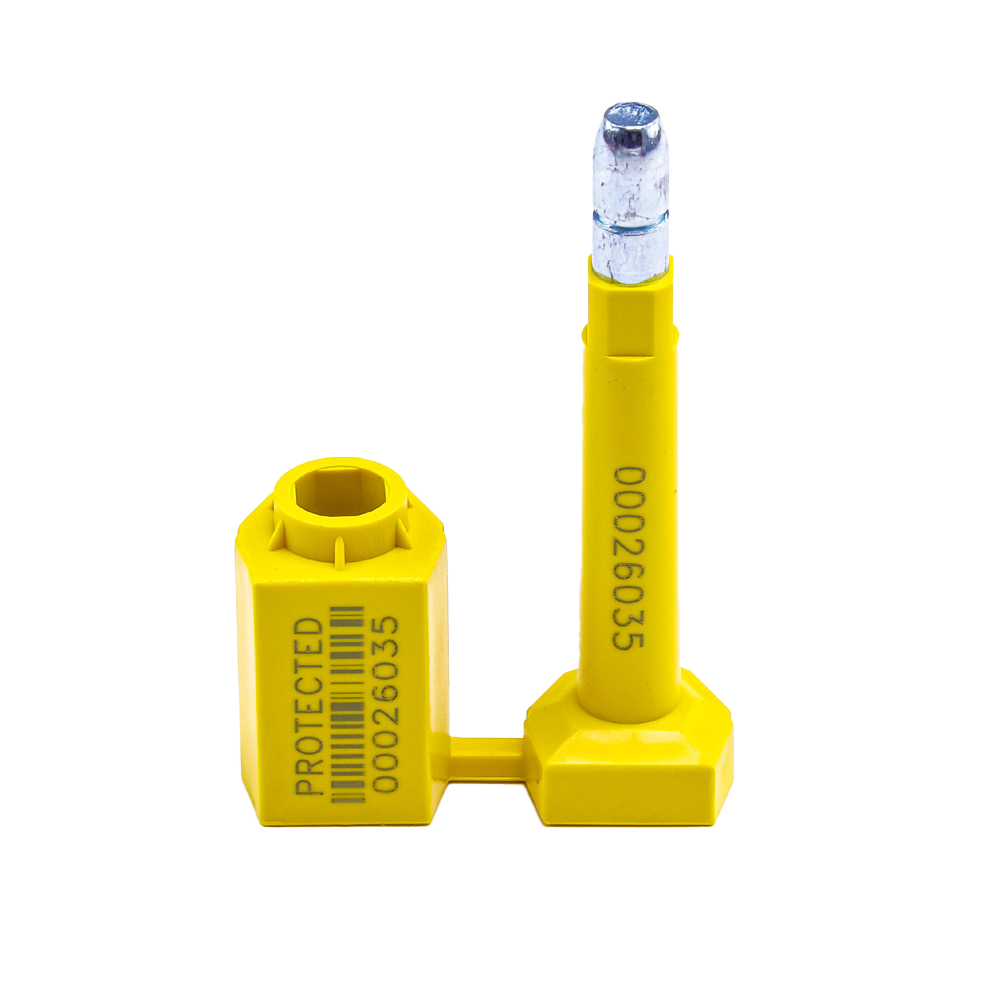

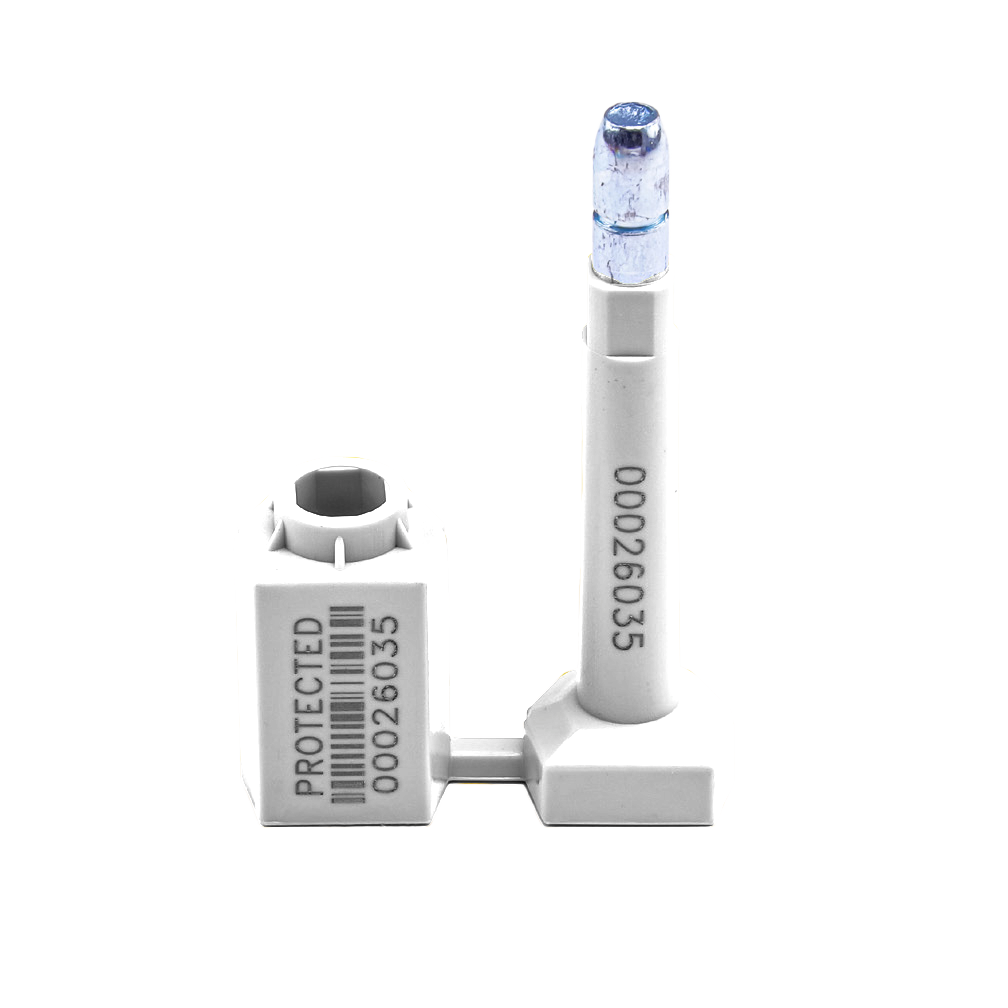

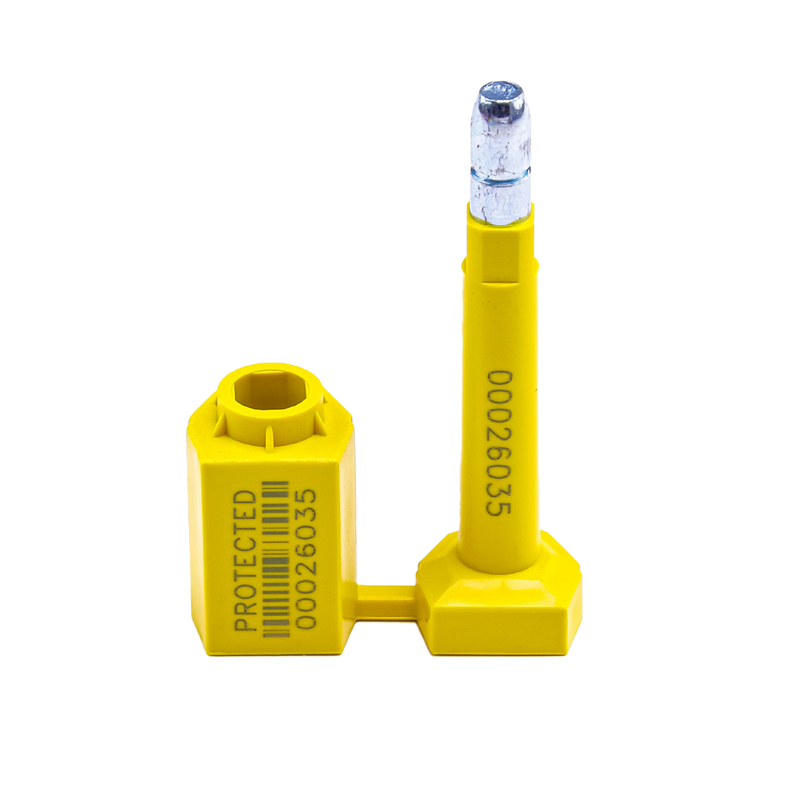

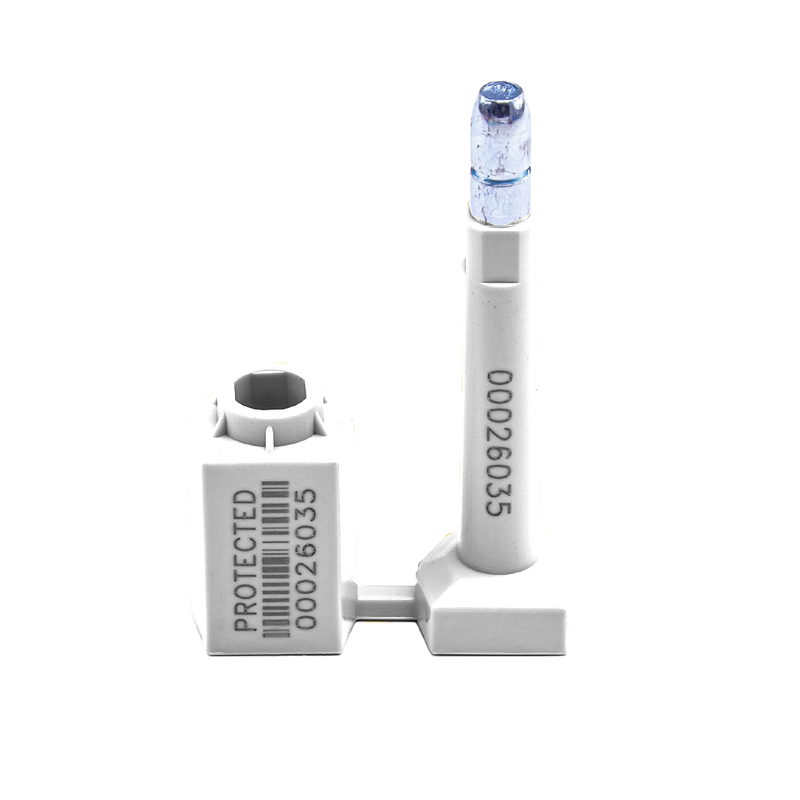

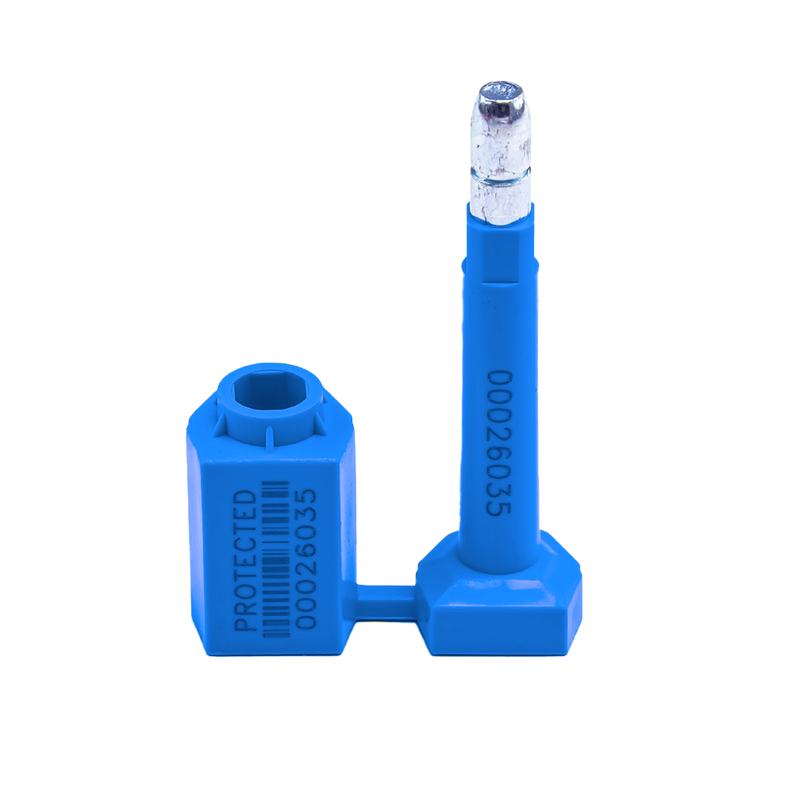

This bolt seal is a high security seal designed to safeguard high value cargo. The seal features a larger printing surface to accomodate variable numbering and printing requests. This bolt seal meets the technical requirements of C-TPAT and is ISO PAS 17712 certified as a high security bolt seal. Please discuss other options with us.
Features and Benefits:
- ABS coated locking pin: Increased durability & impact resistance
- Carbon steel body & locking pin: Increased strength
- ABS housing: Increased durability & impact resistance
- Dual numbered: Increased security with corresponding number on bolt and pin
- Connected body & pin: Facilitates easier management, control and distribution
- REMOVAL: High quality bolt cutter
Technical Data:
- Material (Body): Galvanized low carbon steel, ABS plastic housing
- Optimum Storage: Boxed, indoors at ambient temperature 70F
- Total Length: 3.9" Sealed
- Operational Length: 2.2"
- Pin Diameter: 0.45
- Tensile Strength: 3,747 lbs
- Printing & Marking: Laser etching
- Customization: Name/Logo
- Our inhouse design capability ensures best quality print design and optimum logo positioning. *Let us see your artwork and we will decide on optimum placement.
- Hot Stamping: N/A
- Numbering: Sequential numbering
- Maximum Number of Characters: 8
- Barcode: Barcode only produced with laser marking. Please refer to our barcode scanning guide attached. Barcodes on blue, red, green and orange do not deliver consistently, high quality scan results.
- MOQ To Custom Mark: 10,000
Packaging
- Packaging, Bagging and Labeling: Custom packaging & labelling for high volume orders, at additional cost
- Packing: 10 seals per tray 200 units per box.
- Box Weight: 33 lbs
- Box Dimension: 17" x 13.5" x 5.5"
- Boxes Per Pallet: 64
- Lead Time: Please engage with customer service as this depends on production schedules at time of ordering. For pre-printed bulk orders, please anticipate lead time of up to 16 weeks from artwork sign-off.
Note: A quote will be sent out based on order.
